When a Misfire Isn’t What It Seems: The Real Story Behind Cylinder 3 on This Vehicle


 • December 16, 2025

When a vehicle rolls into our shop with a rough idle and a flashing check engine light, the story is usually deeper than what the computer tells us. Recently, we had a perfect example of that, and a great reminder that even brand-new parts aren’t always the root of the problem.

The Initial Symptoms: A Rough Start and Two Telling Codes

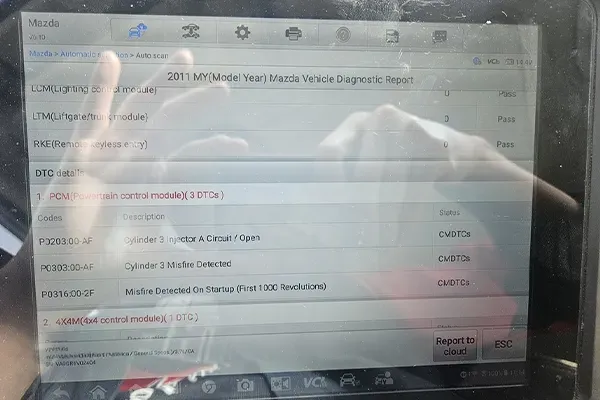

The vehicle ran noticeably rough as soon as we fired it up. Our technician then connected the scan tool and immediately found the following diagnostic codes:

• P0203 – Injector Circuit Open (Cylinder 3)

• P0303 – Misfire Cylinder 3

• P0316 – Misfire on Startup

The cylinder 3 injectors on this engine are positioned under the intake manifold, so inspecting them isn’t as simple as lifting a cover. By using a mirror to see inside and manually reaching into the area, we verified:

• The injector plug was connected

• The injector felt properly seated

So if everything looked okay, why the injector circuit code then?

A Look Into the Vehicle’s History Raised More Questions

Per the vehicle’s service history on Carfax, the fuel injectors had been replaced on October 1st, 2025, just months before it rolled into our shop. But why?

That’s a red flag worth investigating, as injectors usually aren’t replaced unless there’s a misfire, contamination, or electrical issue. Before jumping into expensive repairs, we contacted the shop that previously worked on the vehicle to see if we could get some valuable information.

Turns out, only cylinder 5’s injector had been replaced at that visit.

Why was cylinder 5 replaced then, and now cylinder 3 is failing? It could possibly have been a coincidence, but with what we were about to find, the bigger picture of this vehicle’s issue started coming together.

Digging Deeper: Intake Removal & Electrical Diagnosis

Given the codes and location, our next step was to remove the intake manifold to properly inspect cylinder 3’s injector and wiring harness.

Our technician had a strong suspicion that the root cause was electrical, not mechanical. Before we proceeded with replacing anything though, we wanted proof.

The Turning Point: Bench Testing With an Injector Tester

One of our techs owns professional injector testing and cleaning equipment, even bringing it in from home so we could bench-test this injector and eliminate all doubt.

Following this, the test confirms that Injector #3 is no good. Despite appearing plugged in and seated correctly from our visual inspection, injector 3 failed during the flow and circuit test.

That gave us the factual evidence needed to make a solid recommendation to the customer.

The Final Recommendation: Fix the Problem And Prevent It From Coming Back

After confirming the failure, and reviewing the prior injector history, we contacted the shop that last repaired the vehicle. Their records confirmed that only one injector (cylinder 5) had been replaced previously.

With cylinder 3 now failed, and the rest of the injectors being the same age, brand, and batch, our recommendation to the customer was to replace the five remaining injectors.

Why?

• Injectors often fail in clusters based on age, contamination, or electrical conditions.

• Replacing only one at a time leads to repeat visits, repeated labor costs, and ongoing misfires.

• The intake manifold removal is a significant labor operation, meaning doing it once is more cost-effective than repeating it every time another injector fails.

• Confirmed failure of injector 3 suggests the others are not far behind.

And now, with clear test data, the customer can see exactly why.

The Takeaway: Diagnostics Save Money

This job is the perfect example of why proper in-depth testing beats guesswork. The codes pointed us in the right direction, but the real confirmation came only after the following steps:

• Verifying physical connections

• Reviewing the vehicle’s repair history

• Performing electrical diagnosis

• And finally, bench-testing the injector with specialized equipment

The customer gets a fix they can trust rather than just another part thrown at the problem.

Powertrain Diagnostics at Shoveltown Auto Service

If you’re experiencing a similar issue or any other problem related to your powertrain, don’t hesitate to reach out to the team at Shoveltown Auto Service in Easton, MA. Our technicians have extensive experience in providing top-notch diagnostics and repairs on a wide range of vehicles. Give us a call or schedule online today!
